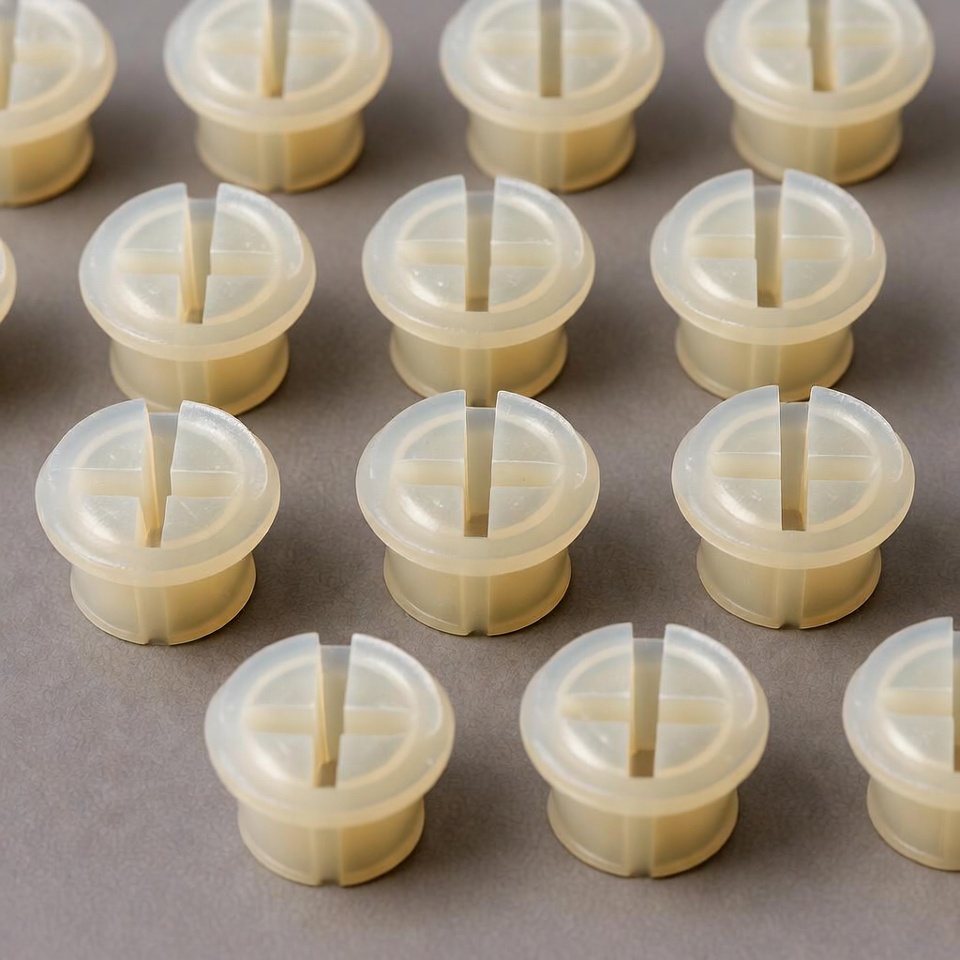

Cross slit silicone check valves in modern bottle caps provide controlled, leak‑proof dispensing and reliable one‑way flow, supporting demanding packaging and fluid‑control applications across multiple industries. By combining precise flow control with compact geometry, these components help brands and OEMs deliver cleaner, safer, and more convenient end‑user experiences.[1][2][3]
Understanding Cross Slit Valve Technology
Cross slit valve technology uses an elastic membrane with a cross‑shaped cut that opens when internal pressure is applied and closes automatically when pressure is released. This self‑sealing behavior enables both accurate dispensing and dependable backflow prevention in a wide range of liquid and gas systems.[2][3][1]
In bottle‑cap applications, the valve is typically mounted behind a flip‑top or sport‑cap outlet so the package remains sealed when not in use and only opens during squeezing or controlled pressure.[4][1]
Core Functional Principles
The functional behavior of this valve architecture is defined by the geometry of the slit, membrane thickness, and material hardness. When optimized, it offers a stable relationship between applied pressure and resulting flow rate, which is critical for consistent dosing and comfortable actuation forces.[3][1][2]
Key functional aspects include:
– Directional flow control: The slit opens only in the forward direction under pressure, minimizing reverse leakage.
– Automatic resealing: Elastic recovery closes the slit once pressure drops, maintaining an airtight, liquid‑tight seal.[1]
– Low cracking pressure: Proper design allows opening at relatively low forces, which is especially important for consumer packaging, medical devices, and ergonomic applications.[2][3]
Advantages in Bottle Cap and Packaging Systems
In packaging, especially squeeze bottles and dispensing caps, these valves directly influence product cleanliness, user satisfaction, and shelf performance. Optimized designs can support both everyday consumer products and more demanding industrial and healthcare systems.[5][4][3][1]
Key performance advantages:
– Leak‑proof storage: Validated designs can remain inverted for days without leakage, even with viscous products such as honey or sauces.[4][3]
– Drip‑free dispensing: One squeeze generates one controlled shot, minimizing stringing, drips, and residue on the closure.[6][4]
– Enhanced hygiene: The closed slit reduces air ingress and contamination, which helps maintain product quality over time.[3][1]
– Compact integration: The valve can be integrated into standard 28 mm, 38 mm, and other cap formats without complex mechanical components.[7][8]
Size Range and Performance Tuning
Bottle‑cap implementations commonly use several reference diameters that map to typical cap formats and dosage targets. Engineers can use these starting points and then refine design parameters to match viscosity, dose volume, and user‑experience goals.[9][7][1][3]
Common Valve Diameters in Bottle Caps
| Nominal diameter | Typical cap or outlet format | Main usage focus |
| 4 mm | Narrow tip inserts and small dose outlets | Very fine dosing and micro dispensing of low volume products. |
| 8 mm | Small and medium dispensing caps | Balanced flow for additives, concentrated sauces, and compact personal care packaging. |
| 13.4 mm | Standard condiment and personal care closures | General purpose dispensing for sauces, dressings, and everyday liquids. |
| 16.4 mm | Larger flip top and high viscosity formats | Higher flow for gels, creams, and thicker food products. |
| 36.2 mm | Wide mouth and bulk containers | Rapid dispensing and high throughput applications in food, chemical, or industrial packaging. |
Beyond nominal diameter, performance is tuned through:
– Slit length and angle.
– Membrane thickness and pre‑stress.
– Material hardness and elastic modulus.[1][2]
Materials and Compliance Considerations
Material selection is central to valve reliability, compatibility, and regulatory compliance. For bottle caps and consumer packaging, high‑purity silicone formulations are widely used because of their stability and safety profile.[11][3][1]
Key material points:
– Food‑grade silicone: FDA and LFGB compliant variants support food, beverage, and personal‑care applications requiring direct or indirect product contact.[11][4]
– Medical‑grade silicone: ISO 10993 and similar standards support medical and healthcare devices that must meet biocompatibility requirements.[5][2]
– Alternative elastomers: Specialty rubbers (such as FKM, EPDM, and others) can be specified for aggressive chemicals, fuels, or industrial fluids.[12][8]
Designers also need to consider temperature range, sterilization methods, and aging behavior when selecting material grades for long shelf‑life products.[11][1]
Manufacturing Workflow and Quality Control
High‑quality valves require tight control over molding, slit cutting, and post‑processing steps to maintain consistent opening pressure and sealing performance. Advanced production lines combine high‑precision tooling with automated inspection to support large volumes and demanding specifications.[4][3][1]
Typical process flow:
1. Tooling and mold design: Optimized for material flow, membrane thickness, and demolding characteristics.
2. Liquid silicone injection molding or compression molding: Produces the base valve geometry with tightly controlled wall thickness and membrane shape.[4][1]
3. Slit punching: Precision punching or cutting creates the cross slit, often with tolerances in the hundredths of a millimeter.[11][4]
4. Post‑treatment and cleaning: Post cure, surface preparation, and cleaning support both performance and cleanliness.[1]
5. Inspection and leak testing: Dimensional checks, inverted leak tests, and functional sampling confirm that each lot meets flow and sealing criteria.[3][4]
Automated production lines can reach capacities in the hundreds of thousands of valves per day, supporting global roll‑outs for high‑volume consumer products.[4]
Use Cases in Packaging and Fluid Control
The same underlying valve concept supports a wide variety of finished products, from everyday food packaging to technical devices. Aligning valve characteristics with end‑use conditions is central to successful implementation.[6][5][1]
Representative applications:
– Food and beverage packaging: Ketchup, mustard, mayonnaise, honey, syrups, flavor concentrates, and sports drinks use these components to provide clean and predictable dosing.[3][1]
– Personal‑care and cosmetic bottles: Shampoos, conditioners, lotions, hand sanitizers, and sunscreens benefit from controlled flow and reduced mess.[3][4]
– Household and industrial chemicals: Dish soaps, detergents, multipurpose cleaners, and some lubricants use valves to prevent spills while improving ease of use.[13][7]
– Medical and laboratory products: Selected designs support one‑way flow or controlled access in medical devices and sampling systems when appropriate material grades are used.[2][5]
These applications demonstrate how one component category can support both consumer‑facing and professional environments with targeted engineering.
Comparison With Other One‑Way Valve Concepts
Cross slit valves are part of a broader family of elastomeric one‑way valves that also includes duckbill, umbrella, and flapper designs. Each concept has strengths for particular flow regimes, pressure ranges, and packaging constraints.[12][5][2]
Functional Positioning in the One‑Way Valve Family
| Valve concept | Geometry | Typical strengths | Common uses |
| Cross slit | Cross shaped slit in a flat or domed membrane | Clean dispensing, compact integration in caps, good drip control. | Squeeze bottles, dispensing caps, compact access points. |
| Duckbill | Tapered outlet with a slit at the end | Good backflow prevention, self closing under back pressure. | Tubing, check valves in fluid lines, pumps. |
| Umbrella | Domed disc with central stem | Low cracking pressure, stable sealing on a seat. | Respiratory devices, pumps, low pressure check functions. |
| Flapper | Flexible flap over a port | Large flow passage and low pressure drop. | Industrial and larger scale systems. |
Cross slit architectures are particularly well suited to compact closures where aesthetics, drip‑free behavior, and repeatable end‑user dosing are central design goals.[1][3]
Practical Engineering and Selection Guidelines
Engineering teams evaluating this valve type for bottle caps or small devices benefit from a structured selection approach. Considering medium properties, user behavior, and regulatory context early in the process helps reduce redesign cycles.[6][2][1][3]
Recommended steps:
1. Characterize the medium
– Viscosity, surface tension, presence of particles, and chemical aggressiveness.
– Sensitivity to oxygen, moisture ingress, or microbial contamination.
2. Define user interaction
– Target squeeze force and dosage per actuation.
– Whether one‑handed operation and spill resistance during transport or sports use are mandatory.[8][6]
3. Select nominal size and hardness
– Choose a baseline diameter that matches the cap system (for example, 4 mm, 8 mm, 13.4 mm, 16.4 mm, or 36.2 mm in relevant designs).[9][7]
– Set hardness to achieve the required balance between low opening pressure and robust sealing.[11][3]
4. Confirm regulatory and environmental constraints
– Food‑contact or medical requirements, sterilization method, storage temperature, and exposure environment.[11][1]
5. Prototype and validate
– Perform leak testing in inverted and side‑lying conditions, life‑cycle testing, and user trials under real‑world conditions.[4][3]
By treating the valve as a critical design element instead of a late‑stage add‑on, teams can create packages that feel intuitive and premium in everyday use.
Targeted Action Call for Engineering and Sourcing Teams
Engineering, R&D, and sourcing professionals who are exploring new packaging concepts or upgrading existing closures can benefit from structured collaboration with an experienced micro‑valve specialist. By sharing product viscosity data, intended cap dimensions, required dosage per actuation, and regulatory needs, decision‑makers can quickly receive tailored valve recommendations, prototype sets across key diameters, and support in tuning slit geometry and hardness for optimal end‑user performance.[16][3]
To advance current or upcoming projects, the next step is to prepare a concise requirement brief covering medium characteristics, expected storage conditions, annual volume, and any testing protocols already in use, and then arrange a focused technical discussion with a dedicated valve engineering team to translate those requirements into manufacturable and scalable solutions.[16][1]
FAQ
Q1. How should teams decide between smaller and larger nominal diameters for new closures?
Smaller diameters tend to support finer, more controlled dosing but require more precise matching of viscosity and squeeze force, while larger diameters offer higher flow and are often preferred for thicker products or larger containers. In practice, teams usually prototype two or three sizes in parallel and compare user feedback, leak performance, and filling‑line compatibility before finalizing the specification.[9][6][1][3]
Q2. Are these valves suitable for both hot‑fill and cold‑fill processes?
Many food‑grade silicone formulations are compatible with typical hot‑fill and pasteurization conditions, but the exact temperature and exposure duration must be validated for each formulation and closure design. Process simulations and line trials help confirm that both the valve and the surrounding cap structure maintain sealing and mechanical stability after repeated temperature cycles.[5][1][3][11]
Q3. What level of leak performance can be expected in inverted storage?
Specialized designs tested in clean‑room environments have demonstrated multi‑day inverted storage without measurable leakage when assembled correctly to compatible closures. Actual performance in production depends on cap tolerances, assembly quality, product viscosity, and transport conditions, so full‑system testing remains essential.[6][1][3][4]
Q4. Do these components support gas applications, or are they limited to liquids?
The same cross slit architecture can be used for both liquids and gases, provided that the slit geometry, material grade, and thickness are matched to the pressure range and medium characteristics. Gas‑oriented designs particularly benefit from careful optimization of opening pressure, leak rate, and long‑term compression set behavior.[2][5]
Q5. How does material hardness influence end‑user experience?
Lower hardness generally reduces opening pressure and can make squeezing easier, especially for children or elderly users, while higher hardness provides a more defined opening threshold and can enhance sealing robustness under high internal pressure or rough handling. Finding the right hardness often involves balancing ergonomic considerations, shelf‑life requirements, and any thermal or mechanical loads imposed by processing and logistics.[5][1][3][11]
