Spring Check Valve vs Swing Check Valve: Key Differences, Applications, and Selection Guide

In fluid systems, choosing between a spring check valve and a swing check valve directly affects reliability, noise, footprint, and lifecycle cost. This upgraded guide explains structures, working principles, performance data, and typical use cases so engineers, OEMs, and buyers can confidently select the right brass check valve for their systems.

What Is a Brass Check Valve?

A brass check valve is a one-way valve that allows fluid to flow in a single direction and automatically blocks reverse flow to protect pumps, instruments, and pipelines. It operates without external power and typically relies on fluid pressure and, in many designs, a spring element to open and close the sealing disc or ball.

Brass is a copper–zinc alloy with good mechanical strength, machinability, and cost performance for water, gas, mineral lubricants, compressed air, and other non-aggressive media. However, brass check valves are not suitable for saline or distilled water because dezincification can remove zinc from the alloy, weaken the structure, and create porosity.

Common brass check valve types include:

– Swing check valves

– Spring (spring-loaded) check valves

What Is a Spring Check Valve?

A spring check valve is a one-way valve that uses a spring-loaded disc or ball to permit flow in the desired direction and prevent backflow in the opposite direction. It is commonly manufactured in brass, bronze, or stainless steel for use with water and other non-corrosive fluids in residential, commercial, and industrial systems.

The valve uses a spring mechanism that keeps the disc pressed against the seat when there is no forward pressure. When the fluid flows in the required direction, the differential pressure overcomes the spring force and lifts the disc off the seat, allowing the medium to pass through. When the flow direction stops or reverses, the spring quickly pushes the disc back into position, blocking backflow.

Spring Check Valve Structure

A typical spring check valve includes:

– A cylindrical or tubular valve body with inlet and outlet ports, often made from brass, bronze, stainless steel, or cast iron

– A movable disc or ball that acts as the closing element and moves along a guided seat

– A spring that provides the restoring force to keep the valve normally closed

When forward flow is present, pressure lifts the disc against the spring force so fluid can pass through. When flow reverses or drops below the cracking pressure, the spring drives the disc back against the seat, creating a tight seal.

Spring Check Valve Working Principle and Cracking Pressure

The basic working principle of a spring check valve is:

– Forward flow creates pressure at the inlet

– Once inlet pressure reaches the minimum required to overcome the spring force (cracking pressure), the disc lifts off the seat

– The valve opens fully as flow increases

– When flow decreases or reverses, the spring pushes the disc back, closing the valve and preventing reverse flow

Because closure is spring-assisted, spring check valves are often referred to as “silent check valves,” and are widely used in applications where reduced water hammer and low noise levels are important.

Brass Spring Check Valve Temperature Range

In typical plumbing and HVAC applications, brass spring check valves can handle approximate working temperatures from -20°C to 120°C (-4°F to 248°F). The exact temperature range depends on the specific valve design, body material, seat material, and manufacturer ratings, so it is always important to confirm the technical datasheet before final selection.

What Is a Swing Check Valve?

A swing check valve uses a hinged disc (also called a flapper) that swings away from the seat to enable fluid or gas to flow forward and swings back to block reverse flow. Swing check valves are widely used where large flow capacities and low pressure loss are required, especially in larger pipe sizes.

In operation, the flapper opens when upstream pressure pushes it away from the seat. When system pressure decreases or tries to reverse, the disc swings back into place, automatically closing the valve and preventing backflow.

Body Structure of Brass Swing Check Valves

The body of a brass swing check valve typically has:

– A compact, robust cylindrical shape for installation in pipelines

– Threaded or flanged connections at the ends for easy assembly

– An internal hinged disc or flap made from brass or a compatible material

The hinged disc is attached to the valve body via a hinge mechanism. During forward flow, the disc swings open and allows the medium to pass through. When flow stops or reverses, the disc swings back and covers the orifice, blocking reverse flow.

Swing Check Valve Working Characteristics

In an inline swing check valve, the disc rotates on a hinge and rests on the valve seat when closed. When the pressure of the medium entering the valve exceeds the cracking pressure, the disc lifts away from the seat and the valve opens. As inlet pressure decreases or reverse flow occurs, the disc returns to the seat and prevents downstream backflow.

Most swing check valve designs are suitable for horizontal or vertical-upflow installations. They are generally not recommended for vertical downflow service because gravity and flow direction cannot reliably return the disc to the seat.

Brass and Bronze Swing Check Valve Temperature Range

Typical temperature ranges are:

– Brass swing check valves: approximately -20°C to 180°C (-4°F to 356°F)

– Bronze swing check valves: approximately -20°C to 232°C (-4°F to 450°F)

These ranges make brass and bronze swing check valves suitable for a wide variety of hot-water and steam-related applications, especially where higher temperature resistance is needed.

Materials for Spring and Swing Check Valves

Correct material selection is critical to ensure mechanical strength, corrosion resistance, and a cost-effective service life. Important factors include:

– Media type (water, gas, oil, chemicals)

– Operating pressure and temperature

– Corrosion level and expected wear

– Total cost of ownership

Common Valve Materials

Bronze

Bronze offers high ductility, good toughness, and strong corrosion resistance at a relatively low cost. It is commonly used for swing check valves in marine and industrial water systems.

Ductile Iron

Ductile iron is widely available and low cost, with high abrasion resistance. Its corrosion resistance is limited, so it is better suited for non-corrosive or well-treated media.

Brass

Brass swing and spring check valves can withstand demanding pressures and temperatures found in many plumbing and HVAC systems. Brass is easy to machine, supports complex internal geometries, and is compatible with copper, brass, plastic, aluminum, and welded steel piping. It is more economical than stainless steel for many general-purpose applications.

Stainless Steel

Stainless steel is used where high corrosion and oxidation resistance are required, such as aggressive fluids, higher temperatures, or demanding industrial environments. Stainless steel check valves can offer longer service life but at a higher initial cost.

Connection Options and Installation Flexibility

Proper connection between a valve and pipeline is essential to avoid leaks, misalignment, and premature failure. Both spring and swing check valves are available with several standard end connections.

Common Connection Types

Threaded Connections

Threaded connections are widely used for small valves in low- and medium-pressure systems. The valve body has internal or external threads that screw directly onto a threaded pipe or fitting.

Press Fittings

Press fittings use specially designed connectors driven onto the valve ends with a hydraulic tool. When crimped, a sealing element creates a smooth, reliable, and leak-tight connection without soldering or welding. These joints are sometimes called press-connect or crimping joints.

Flanged Connections

Flanged connections are robust and suitable for a wide range of pressures and pipe sizes. Two flanges are bolted together at the inlet and outlet, allowing easy removal and maintenance of the valve.

Sweat Fittings

Sweat (soldered) fittings are common in copper pipe systems. The valve end is slightly larger than the pipe, creating a gap that is filled by solder to form a sealed joint between the pipe and valve.

Welded Connections

Welded connections provide a permanent, leak-free connection ideal for high-pressure and high-temperature lines where zero leakage is critical. While more expensive and less flexible than other methods, they offer maximum integrity and reliability.

Installation Flexibility: Spring vs Swing

– Spring check valves can typically be installed in horizontal, vertical upflow, and, depending on design, vertical downflow orientations. This makes them highly versatile for compact or complex piping layouts.

– Swing check valves perform best in horizontal and vertical-upflow lines. They are usually not recommended for vertical downflow because the disc relies on gravity and flow direction for proper operation.

Spring vs Swing Check Valves: Performance, Pros, and Cons

Understanding the performance trade-offs between spring and swing check valves helps match valve type to application requirements.

Advantages and Disadvantages of Swing Check Valves

Advantages:

– Generally lower purchase cost, which supports tight project budgets

– High discharge capacity and relatively low pressure drop, especially in large diameters

Disadvantages:

– Limited orientation options, mainly horizontal or vertical-upflow

– Can amplify water hammer and noise in systems with high velocities or frequent cycling

– Not ideal for compact or space-constrained pipe runs

Advantages and Disadvantages of Spring Check Valves

Advantages:

– Suitable for vertical and mixed orientations, increasing compatibility with existing piping configurations

– Fast, spring-assisted closure that reduces water hammer and allows quieter operation, commonly marketed as silent check valves

– Positive sealing even at low flow below cracking pressure, improving protection for sensitive equipment

Disadvantages:

– Higher unit cost compared with many swing check valves

– Potentially lower flow capacity due to internal guides and springs that occupy part of the flow path

Typical Applications of Swing and Spring Check Valves

Typical Swing Check Valve Applications

Swing check valves, especially those made of bronze or brass, are widely used in:

– Water treatment systems to prevent backflow and cross-contamination between process stages

– Irrigation systems to protect pumps from over-pressurized upstream conditions

– Fire protection systems to prevent backflow from fire lines into potable or supply lines

Their high flow capacity and low pressure loss make them a good fit for larger industrial and building installations.

Typical Spring Check Valve Applications

Spring check valves are used across water pipelines and general system applications to prevent equipment damage from reverse flow. They are well suited for:

– Protection of pumps, compressors, and meters from reverse flow and pressure surges

– Reducing system downtime and contamination risk after pump shutdown or power loss

– Serving as part of a pressure relief or safety arrangement in certain configurations

– Installations where noise reduction and compact design are important, such as residential heating, domestic water, and HVAC systems

Maintenance and Reliability Considerations

Regular inspection and maintenance are key to long-term, trouble-free operation of both spring and swing check valves.

Maintenance Practices

Recommended practices include:

– Visual inspection for external leaks and damage during the first year of operation and periodically thereafter

– Functional tests with a full open–close maneuver cycle every few months in critical systems

– More frequent inspection where the valve operates under extreme temperature, pressure, or contamination, to prevent scale buildup or sticking

Common Failure Modes

Common issues for spring check valves include:

– Leakage due to improper seating, worn seats, or damaged discs

– Spring fatigue or breakage that prevents reliable closure

– Flow restriction caused by debris lodged between the disc and seat

Swing check valves may experience:

– Wear of the disc or seat leading to leakage

– Hinge mechanism wear that causes poor alignment and incomplete closure

– Blockage or fouling that prevents the disc from swinging freely

In many designs, swing check valves can be repaired by replacing worn discs, seats, or hinge components, provided compatible spare parts are available.

How to Choose Between Spring and Swing Check Valves

Selecting between a spring check valve and a swing check valve requires a balance of technical and commercial considerations.

Key Selection Factors

Important criteria include:

– Application requirements such as flow rate, pressure, and acceptable pressure drop

– Type of fluid or gas, including cleanliness and potential for solids or debris

– Valve body and internal material compatibility with media and environment

– Valve size, connection type, and space constraints around the installation

– Orientation (horizontal, vertical up, vertical down) and layout limitations

– Noise limits, water-hammer sensitivity, and comfort expectations

– Maintenance strategy, ease of access, and lifecycle cost

Recommended Use Scenarios

Use a spring check valve when:

– The system includes vertical or mixed orientations or has limited space

– Silent operation and water-hammer reduction are priorities

– The system requires fast, positive sealing to protect sensitive devices

Use a swing check valve when:

– Very high flow capacity and low pressure loss are required

– The pipeline is primarily horizontal or vertical upflow

– Project budgets favor lower initial valve cost, especially in larger diameters

Practical Step-by-Step Selection Checklist

Use the following checklist as a quick selection guide when specifying spring or swing check valves:

1. Define Media and Operating Conditions

– Identify the fluid (water, gas, oil, chemical) and its temperature range.

– Determine normal and maximum operating pressures and any potential surges.

2. Set Performance Targets

– Define required flow capacity and acceptable pressure drop.

– Decide whether silent operation and water-hammer control are mandatory.

3. Evaluate Installation Constraints

– Confirm pipe orientation and space available for valve length and height.

– Check proximity to pumps, elbows, and other fittings that influence flow.

4. Choose Valve Type and Material

– Decide between spring and swing check valves according to flow, noise, and orientation.

– Select valve body material (brass, bronze, stainless steel, ductile iron) and internal materials based on media compatibility.

5. Specify Connection and Standards

– Choose threaded, flanged, press, sweat, or welded connections as required by the piping design.

– Align valve selection with relevant standards, project specifications, and inspection requirements.

6. Plan Maintenance and Spares

– Confirm whether the valve can be serviced in the field and whether repair kits are available.

– Establish inspection intervals and include check valves in preventive maintenance schedules.

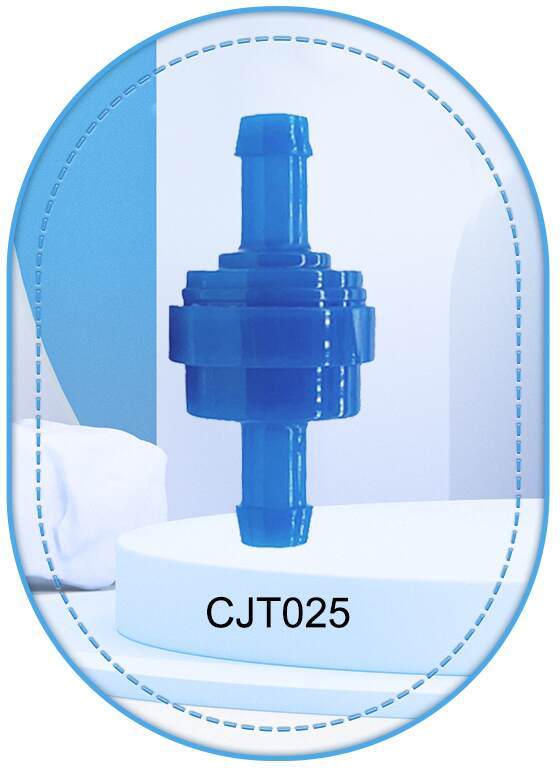

Micro Spring Check Valves in High-Tech Applications

In advanced sectors such as medical devices, smart home appliances, automotive systems, environmental health equipment, and agricultural irrigation, compact micro spring check valves offer precise, reliable, and highly repeatable flow control at low flow rates. These applications often demand tight production tolerances, stable cracking pressure, and specialized materials that are compatible with sensitive or reactive media.

By combining spring check valve principles with micro-scale, application-specific design, OEMs can achieve better integration, longer service life, and improved safety margins. Customized micro fluid control solutions help optimize performance in both high-tech systems and everyday consumer products.

Standard Swing Check Valve Sizes (Example Table)

Size	H (mm)	L (mm)
1/4″	39.0	55.0
3/8″	39.0	55.0
1/2″	43.0	63.0
3/4″	48.0	73.0
1″	68.0	108.0
1 1/4″	58.0	81.0
1 1/2″	61.0	92.0
2″	97.0	148.0
2 1/2″	86.0	137.0
4″	113.0	180.0

Clear Call to Action

If your project requires precise, compact, and reliable one-way flow control, especially for medical equipment, smart appliances, automotive systems, or advanced fluid-handling devices, now is the ideal time to optimize your design with the right check valve technology. Contact our engineering team to discuss your specific requirements, request customized spring or micro spring check valve solutions, and arrange free sample evaluation so you can validate performance in your own system before scaling up to mass production.

FAQs: Spring Check Valve vs Swing Check Valve

Q1. Which valve is better for vertical piping, spring or swing check?

A spring check valve is generally better for vertical piping because the spring provides reliable closure in multiple orientations, including vertical lines. Swing check valves are usually limited to horizontal or vertical-upflow service and are not recommended for vertical downflow.

Q2. Do spring check valves always reduce water hammer compared with swing check valves?

Spring check valves often reduce water hammer because the spring forces the disc to close faster and more smoothly. However, the actual effect depends on factors such as line size, flow velocity, piping layout, and pump characteristics.

Q3. Can swing check valves be repaired instead of replaced?

Many swing check valves can be repaired by replacing worn or damaged parts such as discs, seats, or hinge components. The repairability depends on valve design, availability of spare parts, and whether the body is constructed to allow internal access.

Q4. What are the most common problems or failures associated with spring check valves?

Typical problems include leakage due to improper seating or wear, spring fatigue or breakage, and flow restriction caused by debris trapped between the disc and seat. Regular inspection, cleaning, and timely replacement of worn components can significantly reduce these issues.

Q5. How should I choose between brass and stainless steel for a check valve?

Brass is a good choice for non-aggressive water, gas, or oil applications where cost, machinability, and compatibility with copper-based systems are important. Stainless steel is preferable when higher corrosion resistance, exposure to aggressive media, or higher temperatures are expected, even though it may increase initial cost.
